UCC5390SCDR

Nimewo Pati: UCC5390SCDR

Manifakti: N/A

IC-Bosch Nimewo Pati: 73D-UCC5390SCDR

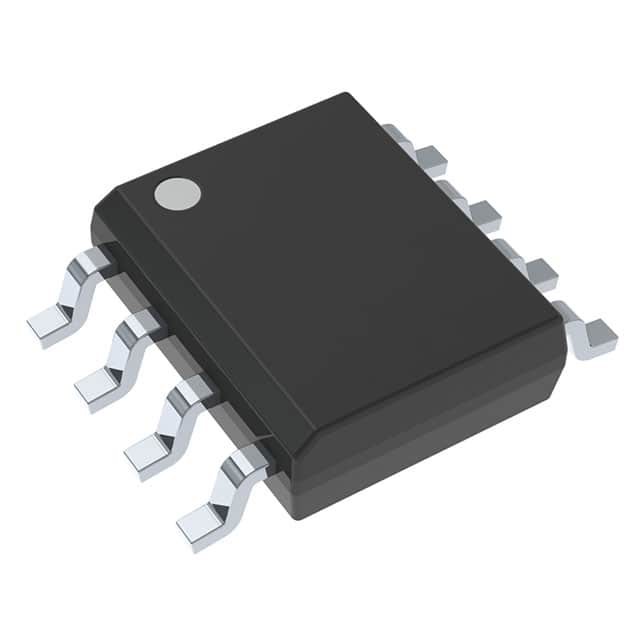

Pake: 8-SOIC (0.154", 3.90mm Width)

Done fèy: UCC53x0 Datasheet.pdf

RoHs Status: DGTL ISO 3KV 1CH GATE DRVR 8SOIC

RoHs Status

Kantite envantè: Nan stok: 14353; Tanpri voye RFQ, nou pral reponn imedyatman.

Kantite

ajoute Cart

Rapid RFQ

Kantite

Minimòm: 1 Tanpri ranpli fòm sa a ak modèl la mande nan detay ak enfòmasyon kontak ou a jwenn yon quote.
Jaden obligatwa yo endike pa yon asterisk ( * )

Enfòmasyon pou kontakte

Kontakte Non:
Non biznis lan:
Telefòn:
Adrès imèl:
Kòmantè:

Espesifikasyon

Datasheets

ManifaktiN/A
Vòltaj - Pwovizyon pou Sòti13.2V ~ 33V
Voltage - Izolasyon3000Vrms
Voltage - Forward (Vf) (tip)-
TeknolojiCapacitive Coupling
Founisè Aparèy pake8-SOIC
Seri-
Leve / tonbe tan (tip)10ns, 10ns
Pousantaj Distòsyon Lajè (Max)20ns
Pwopagasyon Reta tpLH / tpHL (Max)65ns, 65ns

Pake / Ka8-SOIC (0.154", 3.90mm Width)
PakètTape & Reel (TR)
Operating Tanperati-40°C ~ 125°C
Nimewo Chanèl1
Mounting KaliteSurface Mount
Kouran - Sòti Peak-
Kouran - Sòti High, Low10A, 10A
Komen Mode Transient Iminite (Min)100kV/µs
Nimewo pwodwi bazUCC5390
Ajans ApwobasyonCQC, CSA, UR, VDE

1.UCC5390SCDR.pdf 2.UCC5390SCDR.pdf 3.UCC5390SCDR.pdf

Espesifikasyon ki sanble

Pwodwi atribi
Nimewo Pati	UCC5390SCDR	UCC5350SBDR	UCC5320ECDR	UCC28911DR
Manifakti	N/A	N/A	N/A	N/A
Nimewo pwodwi baz	UCC5390	UCC5350	UCC5320	UCC28911
Teknoloji	Capacitive Coupling	Capacitive Coupling	Capacitive Coupling	-
Pakèt	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Pousantaj Distòsyon Lajè (Max)	20ns	20ns	20ns	-
Ajans Apwobasyon	CQC, CSA, UR, VDE	CQC, CSA, UR, VDE	CQC, CSA, UR, VDE	-
Kouran - Sòti Peak	-	-	4.3A	-
Nimewo Chanèl	1	1	1	-
Leve / tonbe tan (tip)	10ns, 10ns	10ns, 10ns	12ns, 10ns	-
Voltage - Forward (Vf) (tip)	-	-	-	-
Vòltaj - Pwovizyon pou Sòti	13.2V ~ 33V	9.5V ~ 33V	13.2V ~ 33V	-
Founisè Aparèy pake	8-SOIC	8-SOIC	8-SOIC	7-SOIC
Operating Tanperati	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C (TJ)
Pake / Ka	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width), 7 Leads
Komen Mode Transient Iminite (Min)	100kV/µs	100kV/µs	100kV/µs	-
Pwopagasyon Reta tpLH / tpHL (Max)	65ns, 65ns	100ns, 100ns	72ns, 75ns	-
Voltage - Izolasyon	3000Vrms	3000Vrms	3000Vrms	-
Seri	-	-	-	-
Mounting Kalite	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Kouran - Sòti High, Low	10A, 10A	8.5A, 10A	2.4A, 2.2A	-
